Series 40E – Section 1.15 Oil Pick-Up Tube

Section 1.15
Oil Pick-Up Tube

Use these guidelines to remove and install the oil pick-up tube.‪

Section 1.15.1
Removal of Oil Pick-up Tube

Perform the following steps to remove the oil pick-up tube.‪

1. With pulley damper removed, remove the oil pick-up tube as follows: See Figure "Removing Oil Pick-up Tube " .

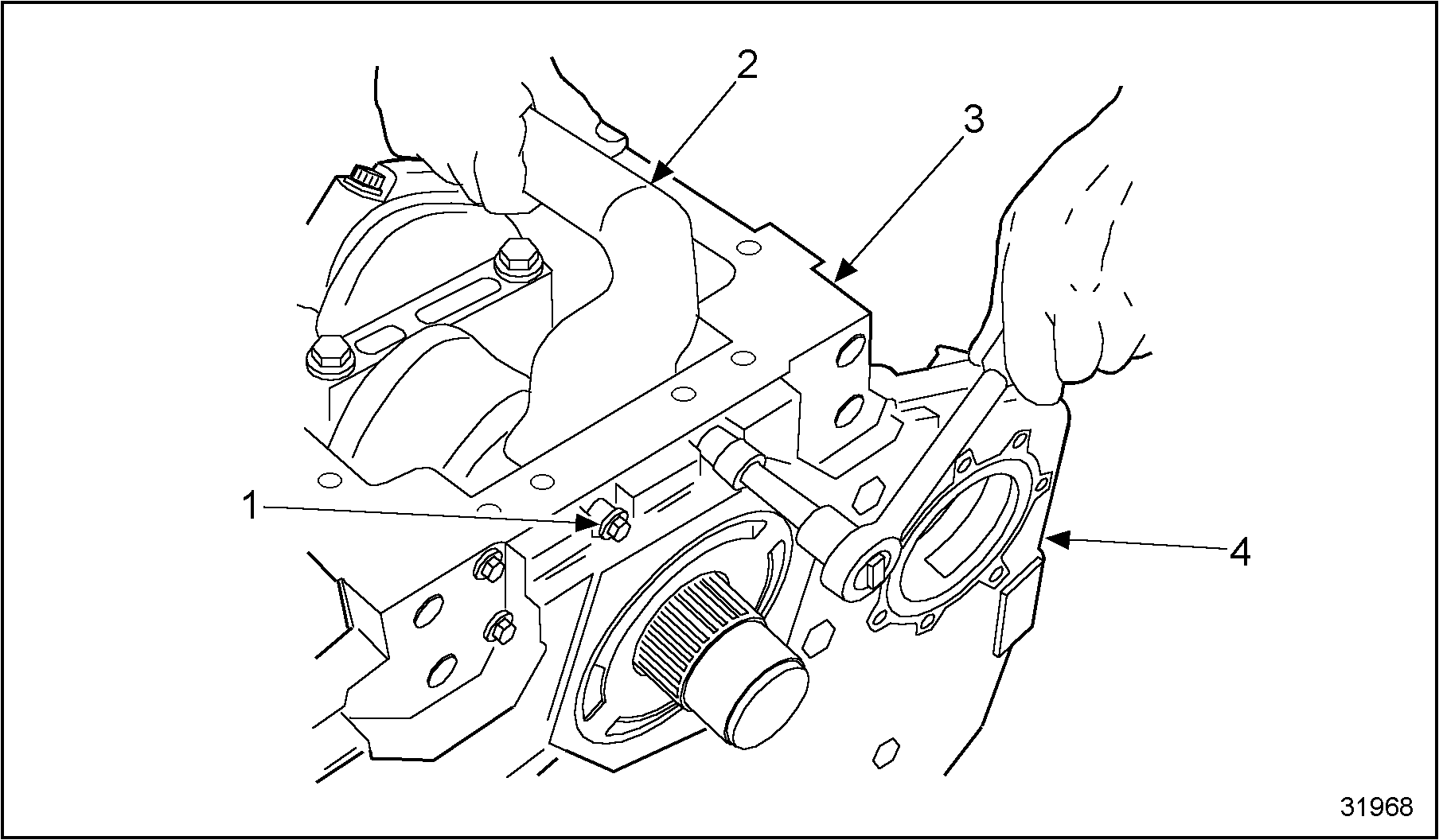

   1. Oil Pick-up Tube Mounting Bolt‪	3. Crankcase‪
   2. Oil Pick-up Tube‪	4. Front Cover‪

   Figure 1. Removing Oil Pick-up Tube

   1. Remove the two (2) retaining bolts at the front cover.
   2. Support oil pick-up tube and remove retaining bolt at support bracket.
   3. Remove the pick-up tube and gasket. Discard gasket.

Section 1.15.2
Installation of Oil Pick-up Tube

Perform the following steps to install the oil pick-up tube.‪

1. Install two (2) oil pick up tube mounting bolts and place new gasket into position.
2. Align holes of oil pick-up tube with two (2) holes in front cover. Secure oil pick-up tube to front cover.
3. Align oil pick-up tube with support bracket and secure using one (1) bolt. Torque to specifications. Refer to Specifications in Section 1.A.
4. Torque two (2) front bolts to specifications. Refer to Specifications in Section 1.A.

   Note: If stress occurs when tightening the mounting bolt of the oil pick-up tube mounting bracket after the front bolts are tightened, replace tube. If no stress occurs, torque the bracket bolt to specifications. Refer to Specifications in Section 1.A.
