Series 60 DDEC V Troubleshooting – Section 81.4 VPOD, Injector, and MAS Schematic

Section 81.4
VPOD, Injector, and MAS Schematic

See Figure "VPOD, Injector, and MAS Schematic" for the VPOD, injector harness, and MAS schematic.‪

Click to see this graphic in a separate window

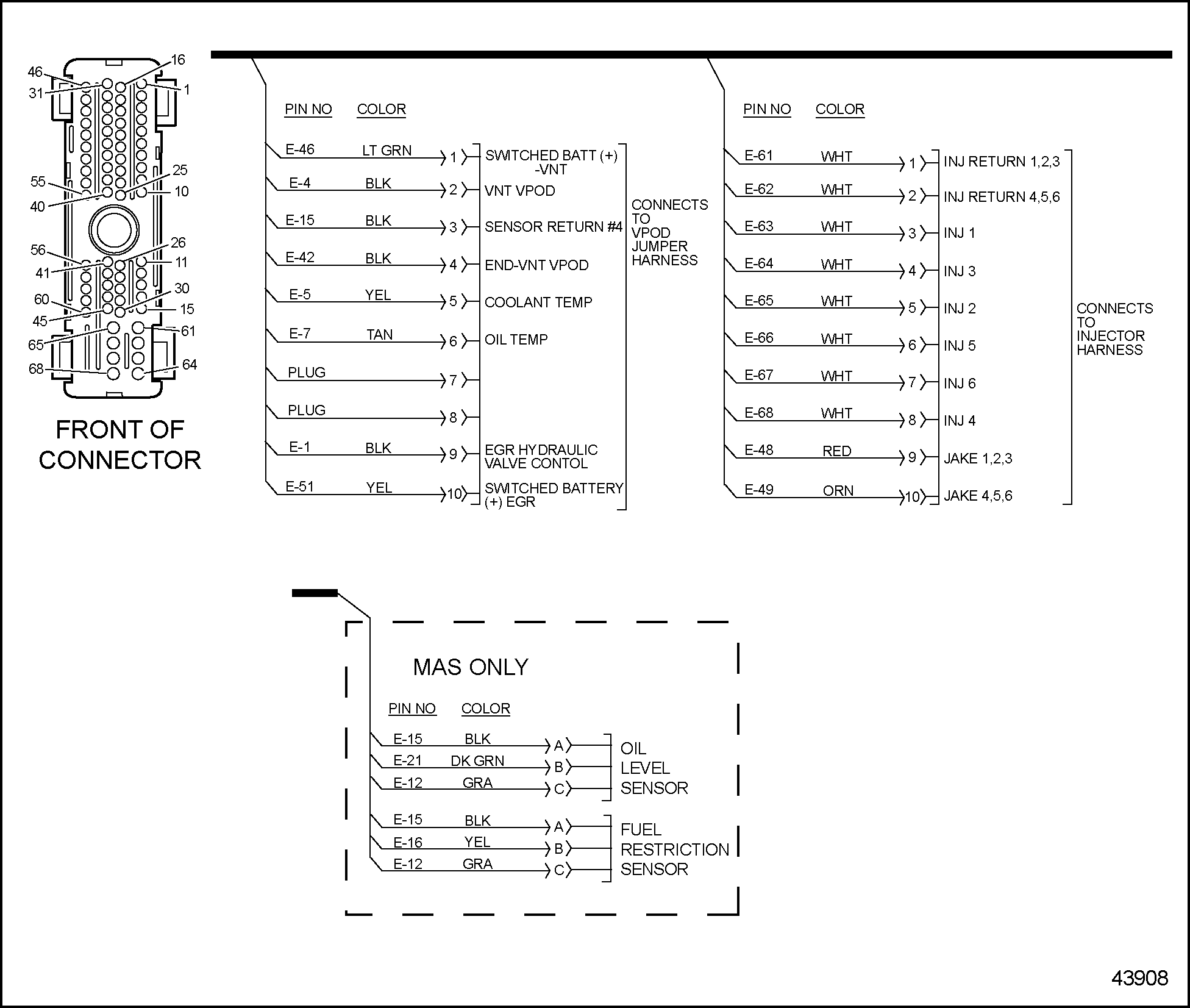

Figure 1. VPOD, Injector, and MAS Schematic

Series 60 DDEC V Troubleshooting Guide - 6SE570
Generated on 10-13-2008

Engine Wiring Schematics List of Contents
