Series 60 DDEC V Troubleshooting – Section 81.3 EGR Temperature Sensor, Delta P Sensor, Temperature Sensors, Pressure Sensors, and Speed Sensors Schematics

Section 81.3
EGR Temperature Sensor, Delta P Sensor, Temperature Sensors, Pressure Sensors, and Speed Sensors Schematics

The following sections have most of the sensor schematics.‪

Section 81.3.1
EGR Temp and Delta P Sensor Schematic

See Figure "EGR Temperature and Delta P Sensor Schematic" for the EGR Temperture and Delta P Sensor schematic.‪

Figure 1. EGR Temperature and Delta P Sensor Schematic

Section 81.3.2
Speed Sensors Schematic

See Figure "Speed Sensors Schematic" for the speed sensors schematic.‪

Figure 2. Speed Sensors Schematic

Section 81.3.3
Pressure Sensors Schematic

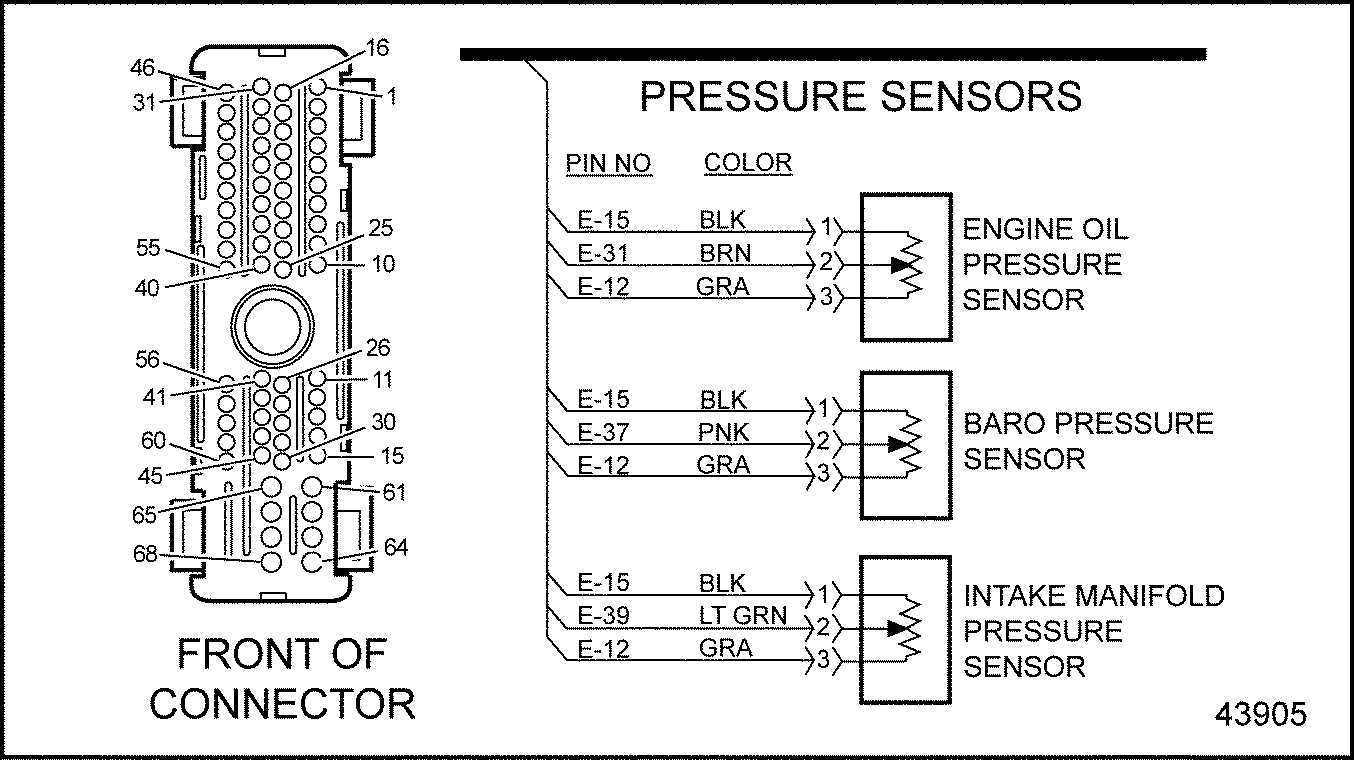

See Figure "Pressure Sensors Schematic" for the pressure sensors schematic.‪

Figure 3. Pressure Sensors Schematic

Section 81.3.4
Temperature Sensors Schematic

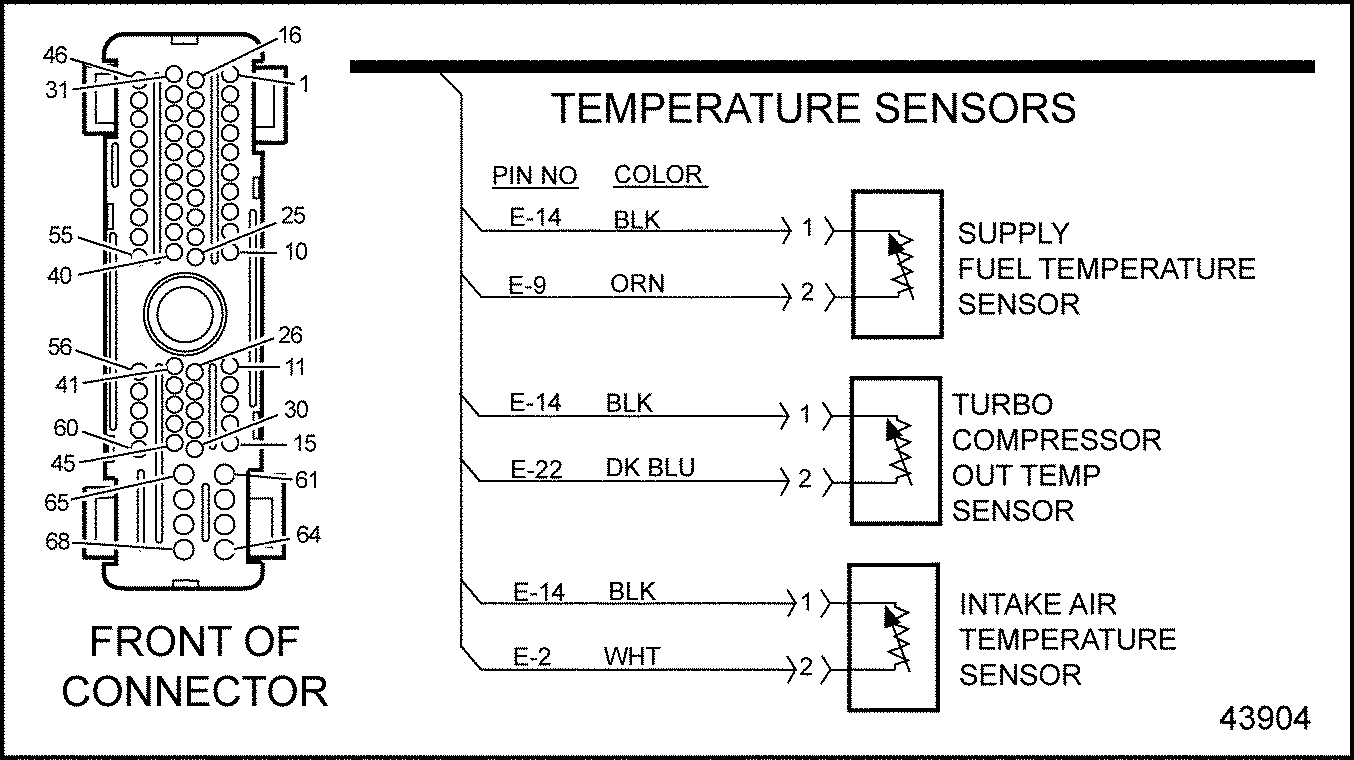

See Figure "Temperature Sensors Schematic" for the temperature sensor schematic.‪

Figure 4. Temperature Sensors Schematic
