Section 132.3
Optimized Idle
See Figure "Optimized Idle System " for the Optimized Idle overall system schematic.

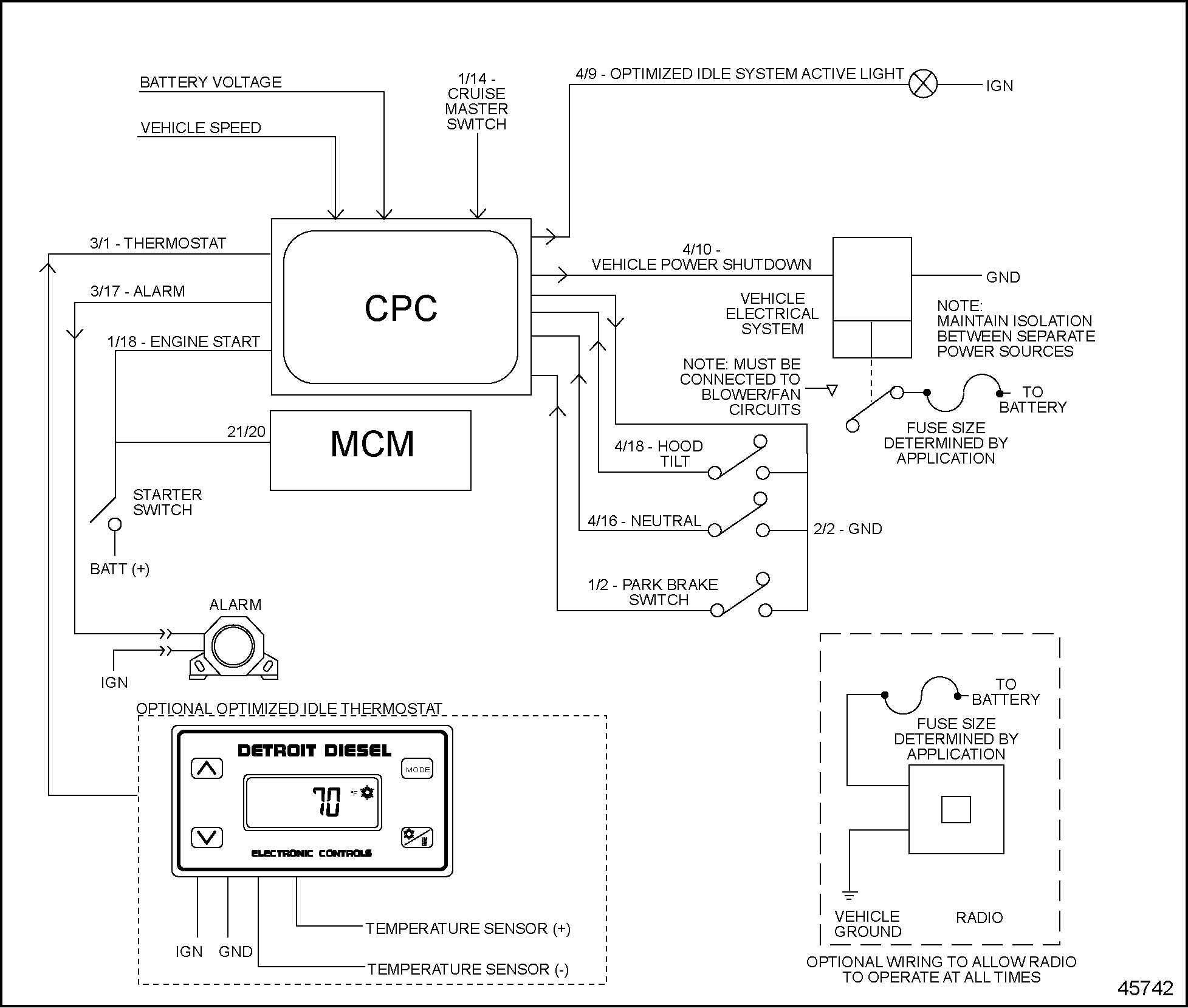

Figure 1. Optimized Idle System
| EPA07 Series 60 DDEC VI Troubleshooting Guide - 6SE567 |
| Generated on 10-13-2008 |
Series 60 DDEC VI Troubleshooting – Section 132.3 Optimized Idle
Section 132.3
