Series 60 DDEC VI Troubleshooting – Section 77.4 SPN 723/FMI 14

Section 77.4
SPN 723/FMI 14

A typical diagnosis is swapped pins.‪

If this SPN and FM:I are active, verify that the wiring from CMP Sensor pin 1 to pin 44 of the MCM 120–pin connector and that the wiring from CMP Sensor pin 2 to pin 45 of the MCM 120–pin connector is correct. See Figure "Camshaft Position Sensor" .‪

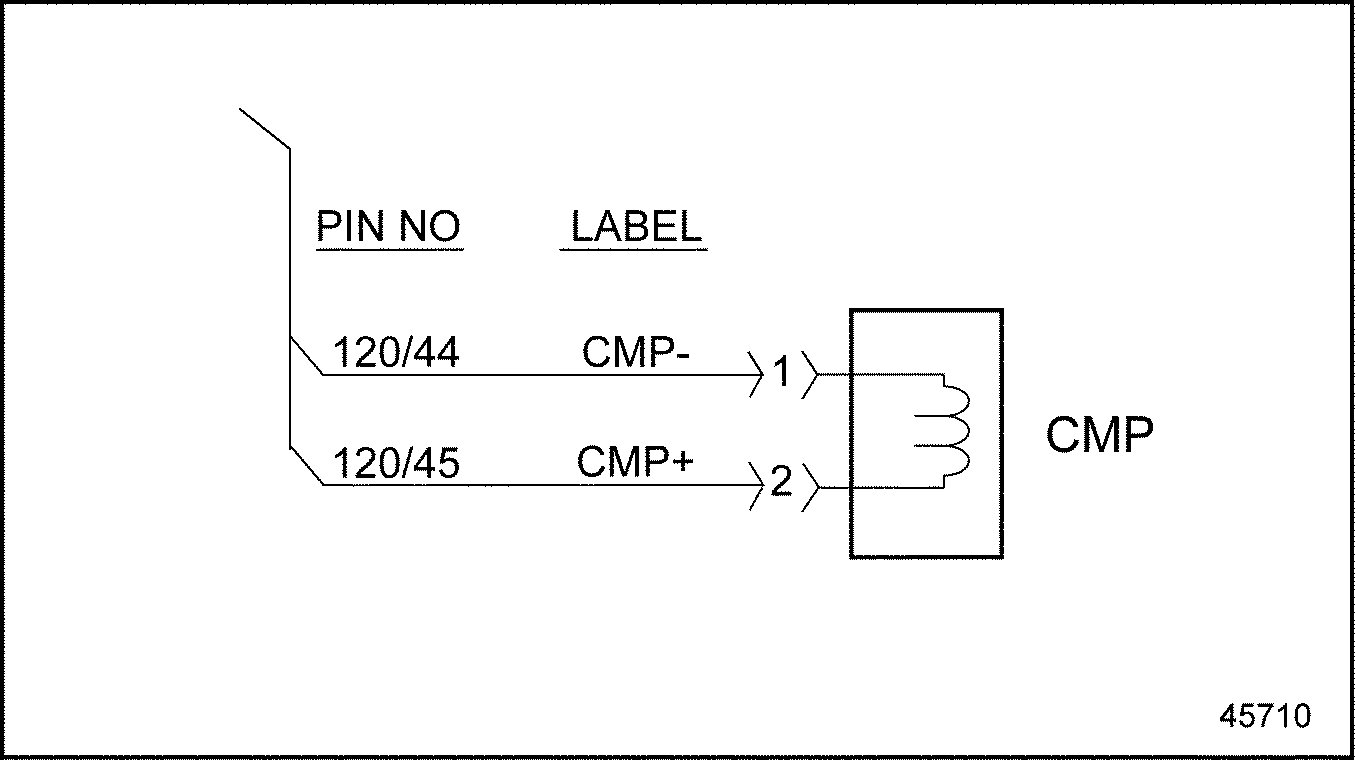

Figure 1. Camshaft Position Sensor
