Series 60 EGR – Section 10.4.7 DDEC IV Wiring Schematics

Section 10.4.7
DDEC IV Wiring Schematics

• DDEC IV Vehicle Harness
• DDEC IV Engine Wiring Diagram
• DDEC V Engine Harness
• DDEC V Vehicle Interface Harness

Figure 1. DDEC IV Vehicle

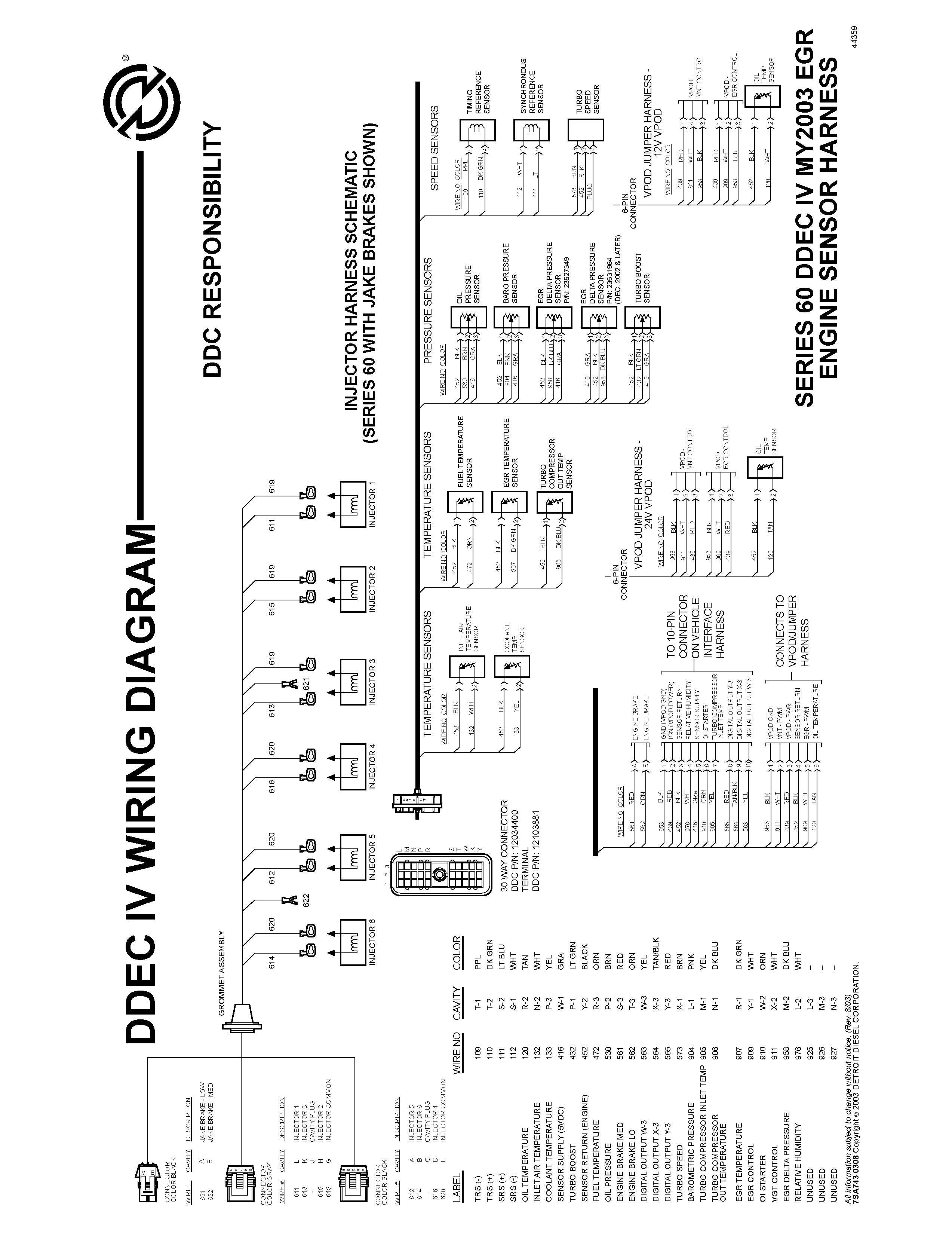

Figure 2. DDEC IV Wiring Diagram

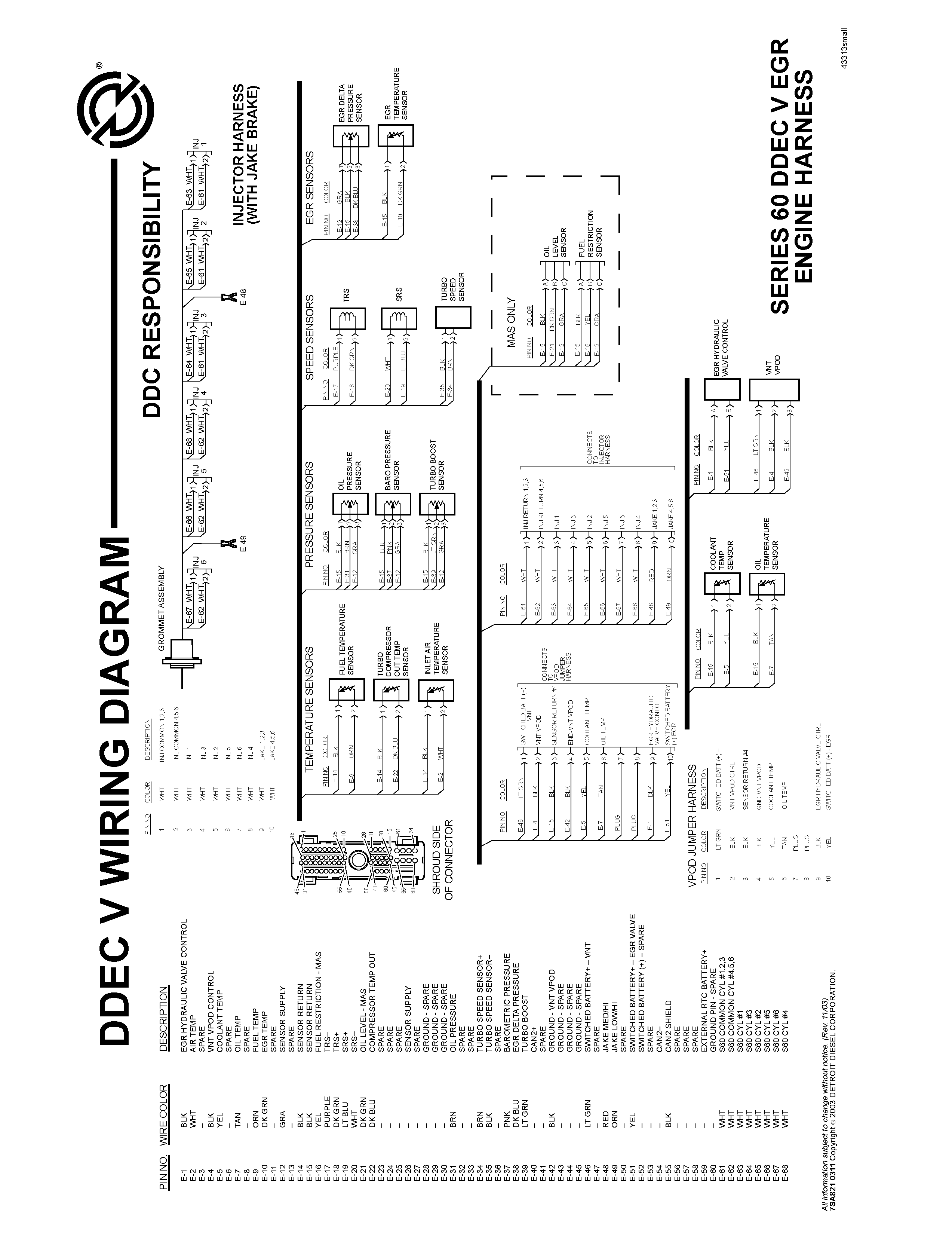

Figure 3. Series 60 DDEC V EGR Engine Harness

Figure 4. DDEC V Vehicle Interface Harness
