Section 3.4
Bypass Valve
|

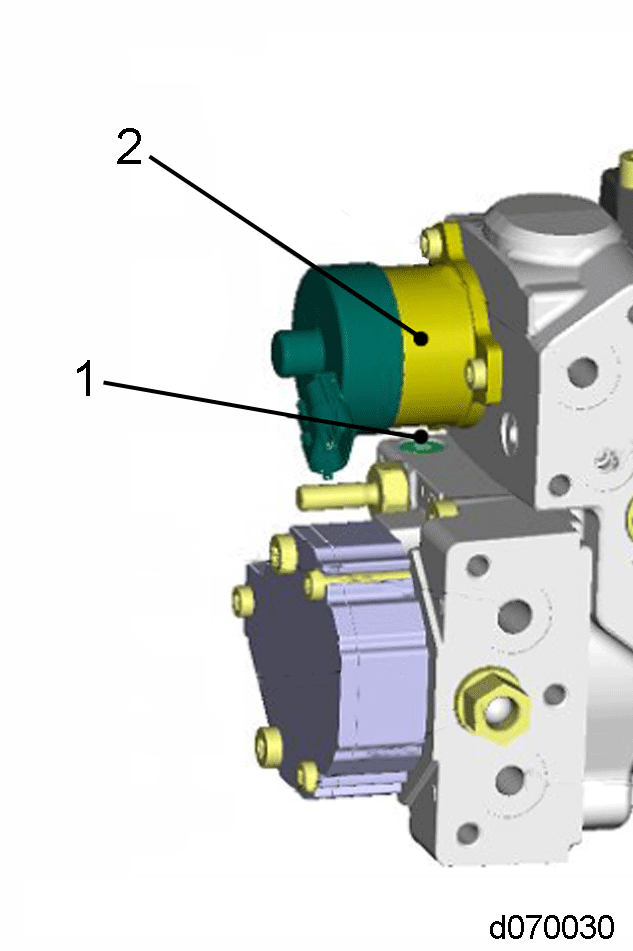

1. Bypass Valve |
2. Pressure Relief Valve |
Located within the plate between the low and high pressure fuel pump is a bypass valve (4) that allows fuel to bypass the stopped gearwheels and continue to the fuel pressure side (B). This valve opens between 0.15 to 0.25 bar (2.2 to 3.6 psi).
